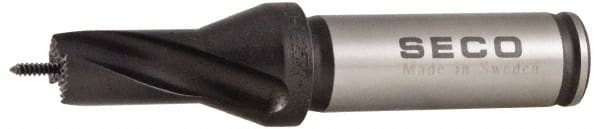

Seco - 12.5 to 12.99mm Diam, 1.5xD, 0.79" Max Depth, 5/8" Shank Diam, 0.472" Flute, 3.795" OAL, Replaceable Tip Drill - SD100 Insert, SD101 Toolholder, Series SD101
Item #: 57027104
Brand: Seco
Model #: 17575
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SD101 |
| Minimum Drill Diameter (mm) | 12.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Diameter (mm) | 12.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5114 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.7900 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | SD100 |
| Toolholder Style | SD101 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 0.4720 |
| Body Length (Decimal Inch) | 1.9060 |
| Overall Length (Decimal Inch) | 3.7950 |
| Shank Length (Decimal Inch) | 1.2760 |
