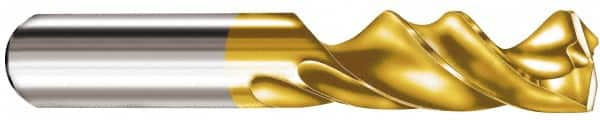

SGS - 7/32" 145° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 57028466
Brand: SGS
Model #: 51291
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2188 |
| Drill Bit Size (Inch) | 7/32 |
| Drill Point Angle | 145 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 1 |
| Overall Length (Inch) | 2-5/8 |
| Point Type | Standard |
| Shank Diameter (Inch) | 1/4 |
| Maximum Drilling Depth (Inch) | 21/32 |
| Spiral Type | Regular Spiral |
| Shank Length (Inch) | 1-7/16 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0002 to +0.0006 |
| Web Configuration | Parallel |
| Web Thinning | Web-Thinned |
| Series/List | 135 |
