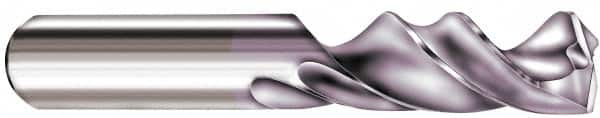

SGS - #29 145° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 57028821
Brand: SGS
Model #: 51381
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1360 |
| Drill Bit Size (Wire) | #29 |
| Drill Point Angle | 145 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 3/4 |
| Overall Length (Inch) | 2-1/2 |
| Point Type | Standard |
| Shank Diameter (Inch) | 1/4 |
| Maximum Drilling Depth (Inch) | 1/2 |
| Spiral Type | Regular Spiral |
| Shank Length (Inch) | 1-7/16 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0001 to +0.0005 |
| Web Configuration | Parallel |
| Web Thinning | Web-Thinned |
| Series/List | 135 |
