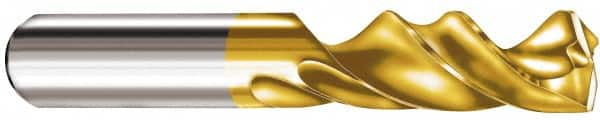

SGS - 0.374" 145° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 57030652
Brand: SGS
Model #: 63247
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3740 |
| Drill Point Angle | 145 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 47.00 |
| Overall Length (mm) | 89.00 |
| Point Type | Standard |
| Shank Diameter (mm) | 10.00 |
| Maximum Drilling Depth (mm) | 35.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 40.00 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.0050 to +0.0200 |
| Web Thinning | Web-Thinned |
| Series/List | 135M |
