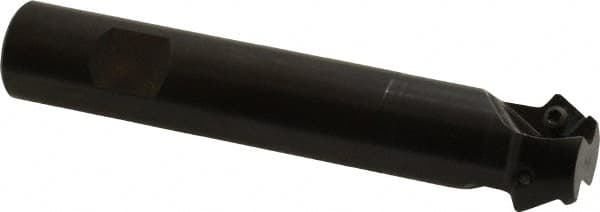

Seco - 60° Lead Angle, 1.04" Max Cut Diam, 3/4" Min Cut Diam, 0.24" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, SPMX 0903.. Insert Style, 4.33" Overall Length, 60° Included Angle
Item #: 57042129
Brand: Seco
Model #: 70080
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0400 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 60 |
| Included Angle | 60 |
| Overall Length (Decimal Inch) | 4.3300 |
| Insert Style | SPMX 0903.. |
| Maximum Depth of Cut (Decimal Inch) | 0.2400 |
| Number of Cutter Inserts | 2 |
| Toolholder Style | R215.39 |
| Shank Length (Decimal Inch) | 2.9500 |
| Maximum RPM | 24300 |
| Complete Insert Compatibility | SPMX 090304-75; SPMX 0903AP-75 |
