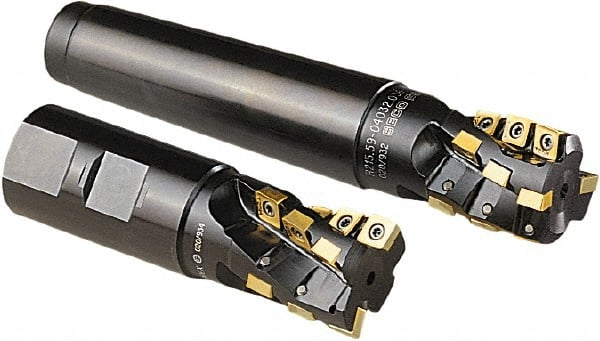

Seco - 1-1/2" Cut Diam, 2-1/4" Max Depth of Cut, 1-1/2" Shank Diam, 6.19" OAL, Indexable Square Shoulder Helical End Mill - CCMX 08T3, XC.X 13T3 Inserts, Weldon Shank, 90° Lead Angle
Item #: 57042392
Brand: Seco
Model #: 54808
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Overall Length/Projection (Decimal Inch) | 6.1900 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 2.2500 |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | R215.59-08.4 |
| Number of Flutes | 4 |
| Weldon Flat | Yes |
| Insert Compatibility | CCMX 08T3, XC.X 13T3 |
| Shank Length (Decimal Inch) | 2.6900 |
| Maximum RPM | 11900 |
