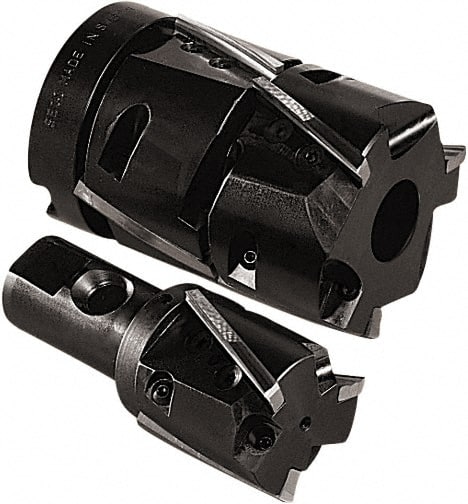

Seco - 2" Cut Diam, 1.97" Max Depth of Cut, 1-1/4" Shank Diam, 4.72" OAL, Indexable Square Shoulder Helical End Mill - R235.15-050 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 57057846
Brand: Seco
Model #: 56423
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.7200 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.9700 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Head Length (Decimal Inch) | 2.3600 |
| Weldon Flat | Yes |
| Insert Compatibility | R235.15-050 |
| Shank Length (Decimal Inch) | 2.3600 |
| Maximum RPM | 5500 |
