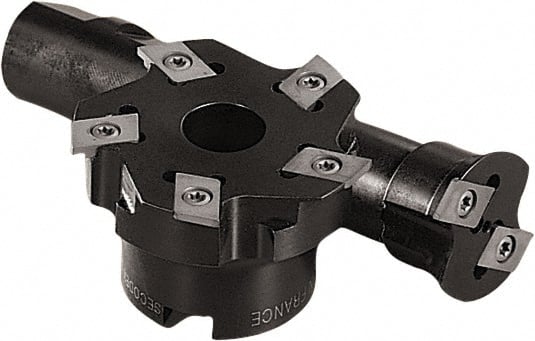

Seco - Shell Mount Connection, 1/8" Cutting Width, 0.203" Depth of Cut, 2-1/2" Cutter Diam, 3/4" Hole Diam, 5 Tooth Indexable Slotting Cutter - R335.15 Toolholder, R335.15-18 Insert, Right Hand Cutting Direction
Item #: 57059073
Brand: Seco
Model #: 72222
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (Decimal Inch) | 0.1240 |
| Maximum Depth of Cut (Decimal Inch) | 0.2030 |
| Cutter Diameter (Decimal Inch) | 2.5000 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Number of Teeth | 5 |
| Toolholder Style | R335.15 |
| Series | R335.15 |
| Insert Style | R335.15-18 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 5 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 17300 |
| Minimum Cutting Width (Decimal Inch) | 0.1240 |
| Maximum Cutting Width (Decimal Inch) | 0.2030 |
| Hub Diameter (Decimal Inch) | 1.5700 |
| Keyway Width (Decimal Inch) | 0.3200 |
| Radius | No |
| Rake | Neutral |
| Complete Insert Compatibility1 | R335.15-18315FG-M12; R335.15-18350FG-M12; R335.15-18400FG-M12; R335.15-18415FG-M12; R335.15-18500FG-M12; R335.15-18515FG-M12 |
