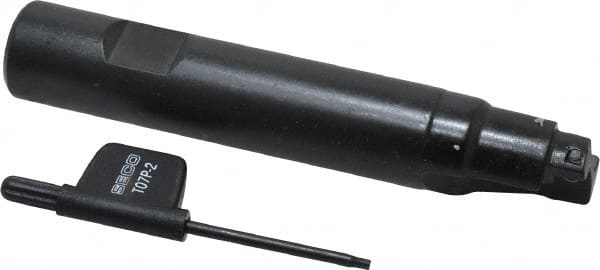

Seco - 3/4" Cut Diam, 0.2" Max Depth of Cut, 3/4" Shank Diam, 4.33" OAL, Indexable Square Shoulder End Mill - SPMX 0602 Inserts, Weldon Shank, 90° Lead Angle
Item #: 57062853
Brand: Seco
Model #: 72183
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7550 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 4.3300 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| Cutter Style | R417.19 |
| Insert Compatibility | SPMX 0602 |
| Shank Length (Decimal Inch) | 3.1500 |
| Maximum RPM | 32500 |
| Drilling Depth (Decimal Inch) | 0.47 |
