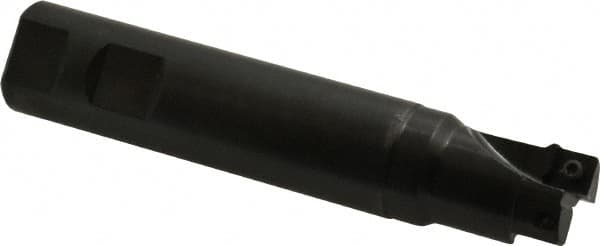

Seco - 1" Cut Diam, 0.31" Max Depth of Cut, 1" Shank Diam, 5.12" OAL, Indexable Square Shoulder End Mill - SPMX 0903 Inserts, Weldon Shank, 90° Lead Angle
Item #: 57062911
Brand: Seco
Model #: 72173
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 5.1200 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3100 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| Cutter Style | R417.19 |
| Insert Compatibility | SPMX 0903 |
| Shank Length (Decimal Inch) | 3.5400 |
| Maximum RPM | 22500 |
| Drilling Depth (Decimal Inch) | 0.59 |
