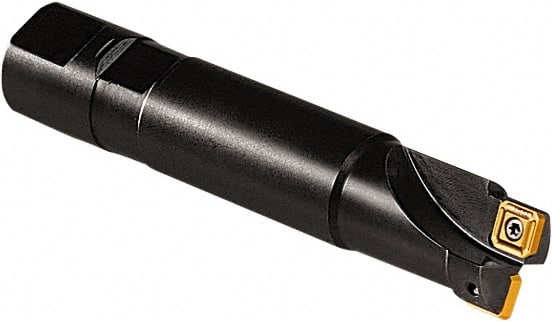

Seco - 1.181" Cut Diam, 0.31" Max Depth of Cut, 1" Shank Diam, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle
Item #: 57062945
Brand: Seco
Model #: 54857
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.1810 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3100 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Minimum Cutting Diameter (Decimal Inch) | 1.1800 |
| Weldon Flat | Yes |
| Shank Length (Decimal Inch) | 3.5400 |
| Maximum RPM | 21200 |
