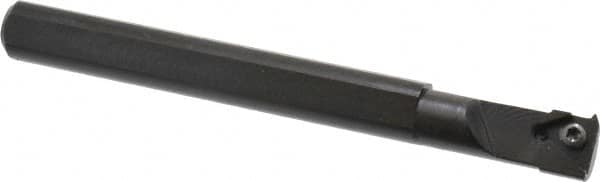

Seco - Internal Thread, Right Hand Cut, 5/8" Shank Width x 0.566" Shank Height Indexable Threading Toolholder - 6" OAL, 16NR Insert Compatibility, SN Toolholder, Series Snap Tap
Item #: 57139529
Brand: Seco
Model #: 72374
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Height (Decimal Inch) | 0.5660 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | 16NR |
| Series | Snap Tap |
| Toolholder Style | SN |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4060 |
| Center to Cutting Edge (Decimal Inch) | 0.4060 |
| Maximum Depth of Cut (Decimal Inch) | 1.5000 |
| Head Length (Decimal Inch) | 1.5000 |
| Maximum Bore Depth (Decimal Inch) | 1.5000 |
| Minimum Bore Diameter (Decimal Inch) | 0.7500 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
