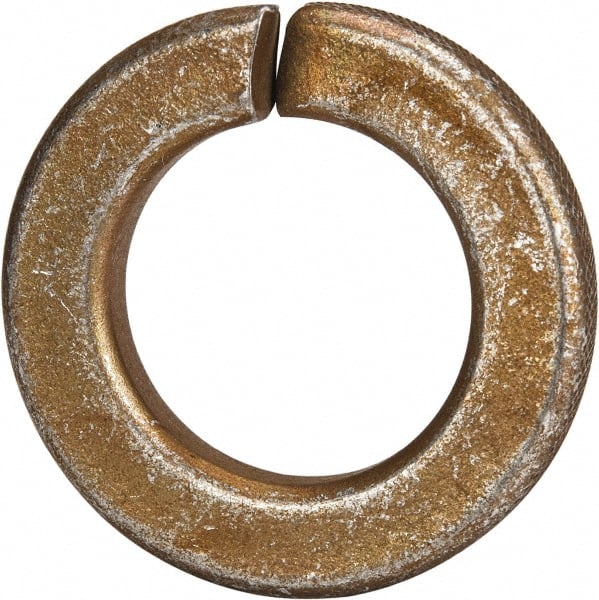

Made in USA - 5/8", 0.156" Thick Split Lock Washer - 1060 Spring Steel, Zinc Yellow Dichromate Finish, 0.628" Min ID, 0.641" Max ID, 1.073" Max OD
Item #: 57224412
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 5/8 |
| Material | Spring Steel |
| Material Grade | 1060 |
| Finish/Coating | Zinc Yellow Dichromate |
| Thickness (Decimal Inch) | 0.1560 |
| Minimum Inside Diameter (Decimal Inch) | 0.6280 |
| Maximum Inside Diameter (Decimal Inch) | 0.6410 |
| Maximum Outside Diameter (Decimal Inch) | 1.0730 |
| Military Specification | Meets Military Specifications |
| Maximum Thickness (Decimal Inch) | 0.1660 |
| Fastener Standard | MS35338 |
