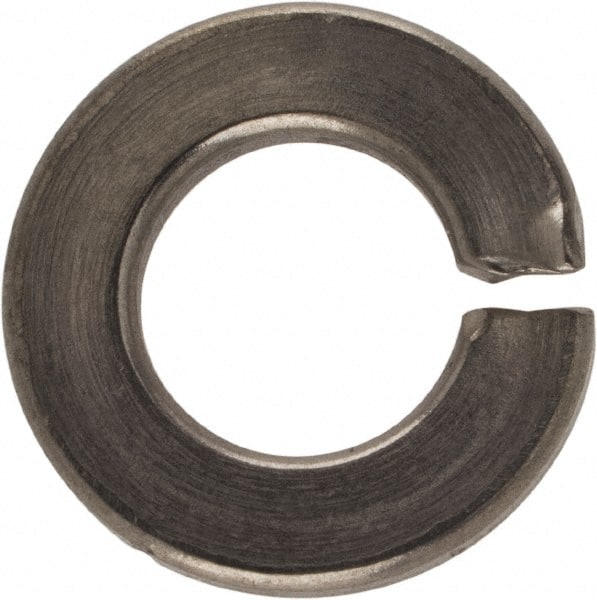

Made in USA - 1/4", 0.062" Thick Split Lock Washer - 400 Stainless Steel, Passivated Finish, 0.252" Min ID, 0.26" Max ID, 0.487" Max OD
Item #: 57224503
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 1/4 |
| Material | Stainless Steel |
| Material Grade | 400 |
| Finish/Coating | Passivated |
| Thickness (Decimal Inch) | 0.0620 |
| Minimum Inside Diameter (Decimal Inch) | 0.2520 |
| Maximum Inside Diameter (Decimal Inch) | 0.2600 |
| Maximum Outside Diameter (Decimal Inch) | 0.4870 |
| Military Specification | Meets Military Specifications |
| Maximum Thickness (Decimal Inch) | 0.0720 |
| Fastener Standard | MS35338 |
