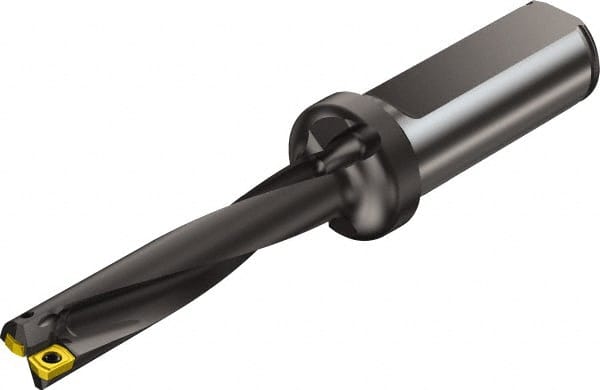

Sandvik Coromant - 4.2579" Max Drill Depth, 5xD, 21mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Straight Shank
Item #: 57231557
Brand: Sandvik Coromant
Model #: 5765387
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..L-05 |
| Drill Diameter (mm) | 21.00 |
| Drill Diameter (Decimal Inch) | 0.8270 |
| Maximum Drill Depth (Decimal Inch) | 4.2579 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 2.8 |
| Insert Size (Decimal Inch) | 0.1102 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8898 |
| Maximum Drill Diameter (mm) | 21.00 |
| Overall Length/Projection (mm) | 182.00 |
| Overall Length/Projection (Decimal Inch) | 7.1654 |
| Insert Compatibility (Outside or Peripheral) | 04P |
| Flute Length (mm) | 120.20 |
| Flute Length (Decimal Inch) | 4.7323 |
| Body Length (Decimal Inch) | 4.2520 |
| Body Length (mm) | 108.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Radius (Decimal Inch) | 0.4134 |
| Series | CoroDrill 880 |
