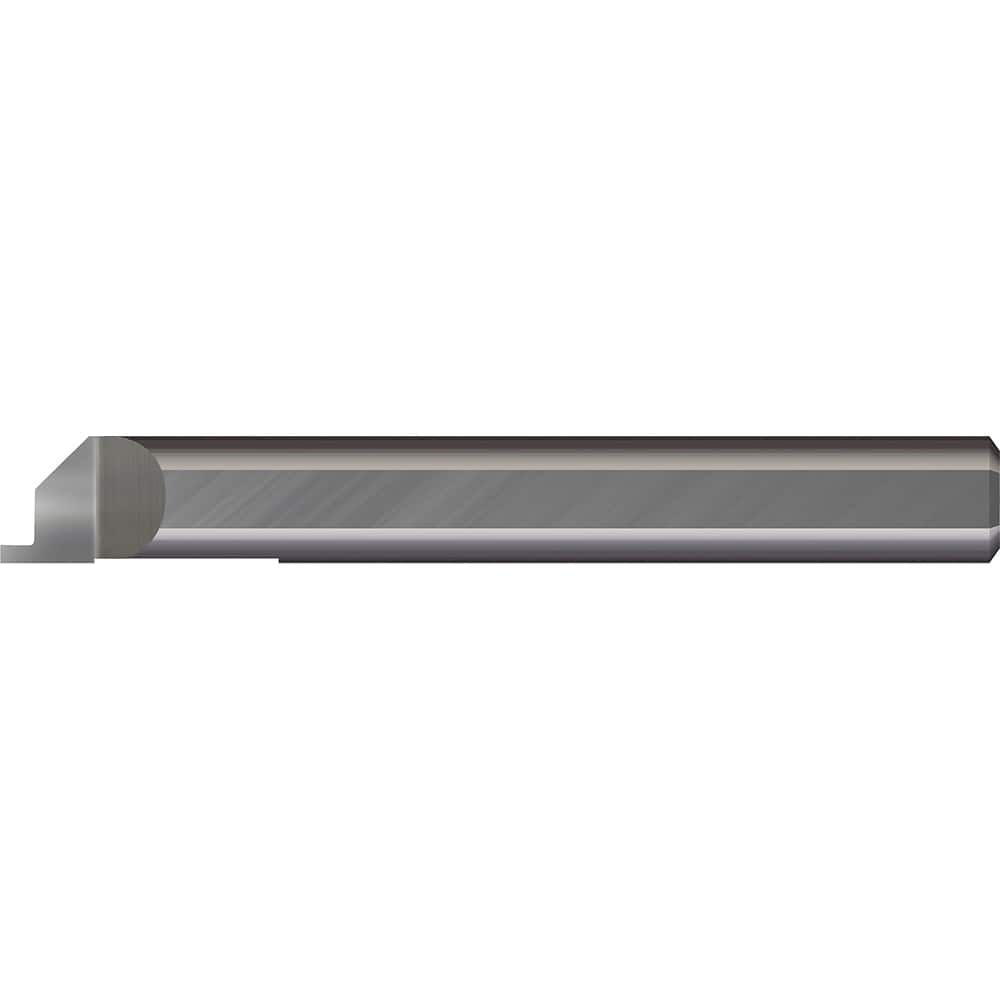

Micro 100 - Grooving Tools; Grooving Tool Type: Face ; Material: Solid Carbide ; Shank Diameter (Decimal Inch): 0.5000 ; Shank Diameter (Inch): 1/2 ; Groove Width (Decimal Inch): 0.1560 ; Projection (Decimal Inch): 0.1000
Item #: 57245524
Brand: Micro 100
Model #: FG-500-156
Product Specifications
Grooving Tools; Grooving Tool Type: Face ; Material: Solid Carbide ; Shank Diameter (Decimal Inch): 0.5000 ; Shank Diameter (Inch): 1/2 ; Groove Width (Decimal Inch): 0.1560 ; Projection (Decimal Inch): 0.1000
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Groove Width (Decimal Inch) | 0.1560 |
| Projection (Decimal Inch) | 0.1000 |
| Minimum Hole Diameter (Decimal Inch) | 0.5000 |
| Maximum Hole Depth (Decimal Inch) | 0.3750 |
| Maximum Hole Depth (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 3.00000 |
| Overall Length (Inch) | 3 |
| Finish/Coating | Uncoated |
