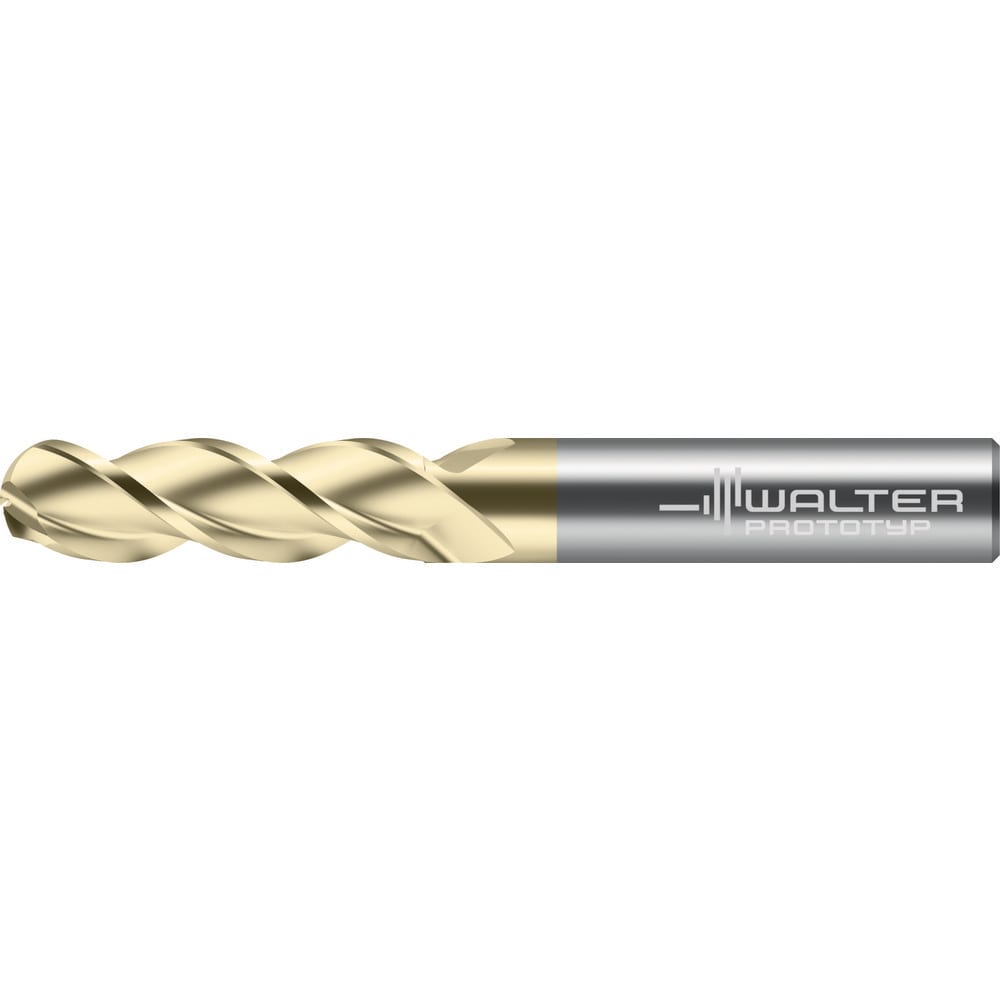

Ball End Mill: 3/16" Dia, 5/16" LOC, 3 Flute, Solid Carbide
Item #: 07161607
Brand: Walter-Prototyp
Model #: 8418345
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 5/16 |
| Coating/Finish | ZrN |
| Overall Length (Inch) | 2 |
| Shank Diameter (Inch) | 3/16 |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 39 |
| Overall Length (Decimal Inch) | 2.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.4000 |
| Length Type | Extended |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Nose Radius (Decimal Inch) | 0.0938 |
| Neck Length (Decimal Inch) | 0.8215 |
| Reach Length (Decimal Inch) | 1.1340 |
| Mill Diameter Tolerance | h7 |
| Shank Diameter Tolerance | h6 |
| Maximum Helix Angle | 39 |
| Minimum Helix Angle | 39 |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Material Grade | WJ30CD |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | MA467 |
| Flute Type | Spiral |
| UNSPSC Code | 23241614 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3125 |
| Manufacturers Catalog Number | MA467.4.76A3D-WJ30CD |
| System Of Measurement | Fractional Inch |
