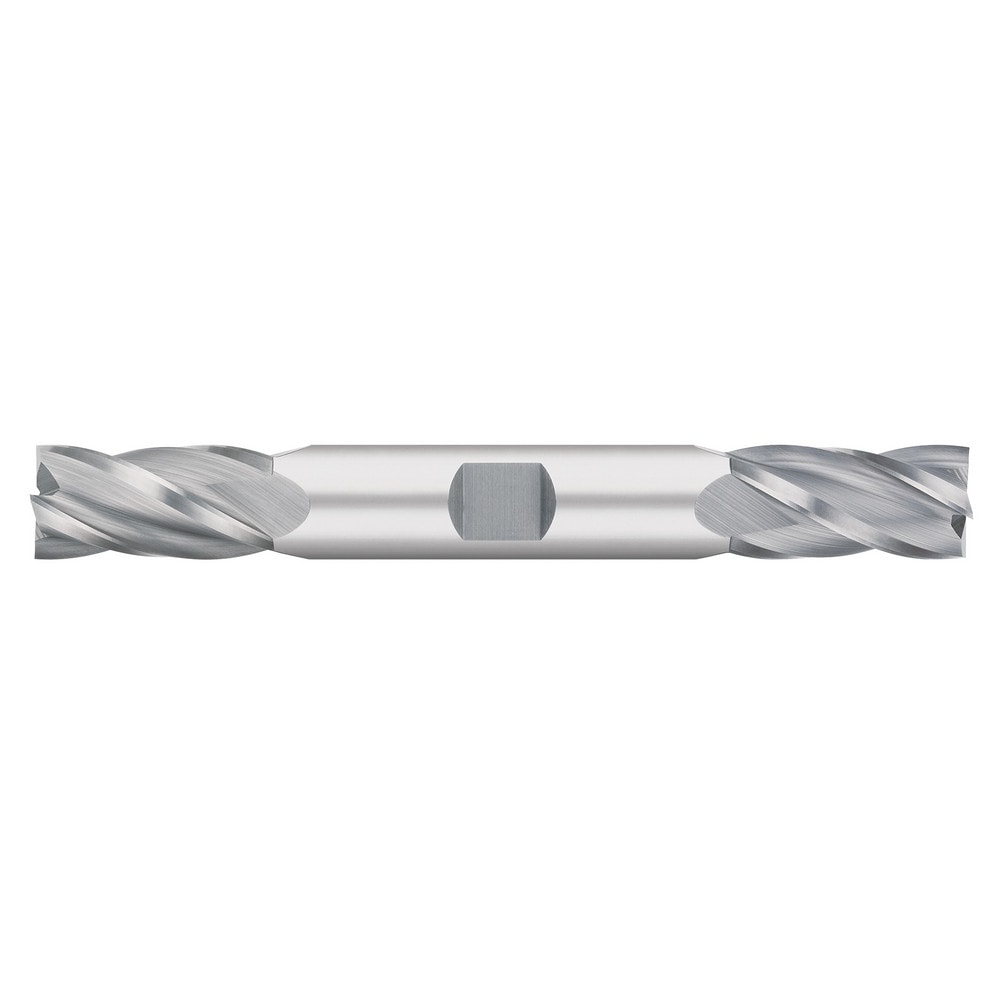

Square End Mill: 0.1563" Dia, 0.4375" LOC, 4 Flute, Solid Carbide
Item #: 07250251
Brand: Titan USA
Model #: TC12510
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1563 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.4375 |
| Length of Cut (Inch) | 7/16 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 3.2500 |
| Overall Length (Inch) | 3-1/4 |
| Single Or Double End | Double |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Series | General Purpose End Mills - Carbide - 4 Flute - Square - 30 deg Helix - Double-Ended |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
