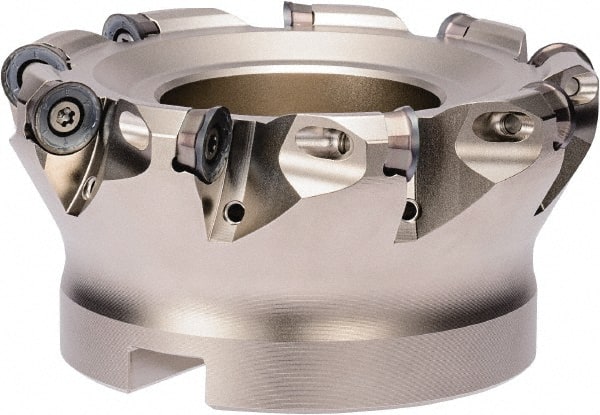

Kyocera - 3" Cut Diam, 0.236" Max Depth, 0.382" Arbor Hole, 6 Inserts, RPGT 12, RPMT 12 Insert Style, Indexable Copy Face Mill - MRX Cutter Style, 13,500 Max RPM, 1.969" High, Through Coolant, Series RAD-6
Item #: 57346447
Brand: Kyocera
Model #: 8608622
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Arbor Hole Diameter (Decimal Inch) | 0.3820 |
| Overall Height (Decimal Inch) | 1.9690 |
| Series | RAD-6 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RPGT 12; RPMT 12 |
| Cutter Style | MRX |
| Through Coolant | Yes |
| Maximum RPM | 13500 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Insert Inscribed Circle (mm) | 11.99 |
| Insert Inscribed Circle (Decimal Inch) | 0.4720 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.8660 |
| Complete Insert Compatibility | RPGT 1204M0ER-GM; RPGT 1204M0ER-SM; RPMT 1204M0EN-GH; RPMT 1204M0ER-GM |
| ISO Number | MRX3000R-12-6T |
