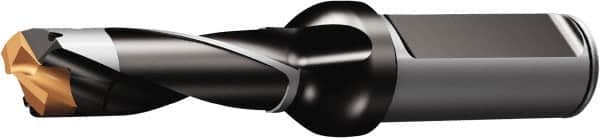

Sandvik Coromant - 23 to 23.99mm Diam, 3xD, 75.59mm Max Depth, 1" Shank Diam, 97.39mm Flute, 157mm OAL, Replaceable Tip Drill - 870-2390-23-PM Insert, 23 Seat Size, 870...LX-3 Toolholder, Series CoroDrill 870
Item #: 57349334
Brand: Sandvik Coromant
Model #: 6239456
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 23.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9055 |
| Maximum Drill Diameter (mm) | 23.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.9445 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.9760 |
| Maximum Drill Depth (mm) | 75.59 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | 870-2390-23-PM |
| Insert Seat Size | 23 |
| Toolholder Style | 870...LX-3 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Tip Length (mm) | 3.61 |
| Tip Length (Decimal Inch) | 0.1421 |
| Flute Length (mm) | 97.39 |
| Flute Length (Decimal Inch) | 3.8343 |
| Body Length (mm) | 79.00 |
| Body Length (Decimal Inch) | 3.1102 |
| Overall Length (mm) | 157.00 |
| Overall Length (Decimal Inch) | 6.1811 |
| Toolholder Material | Steel |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
