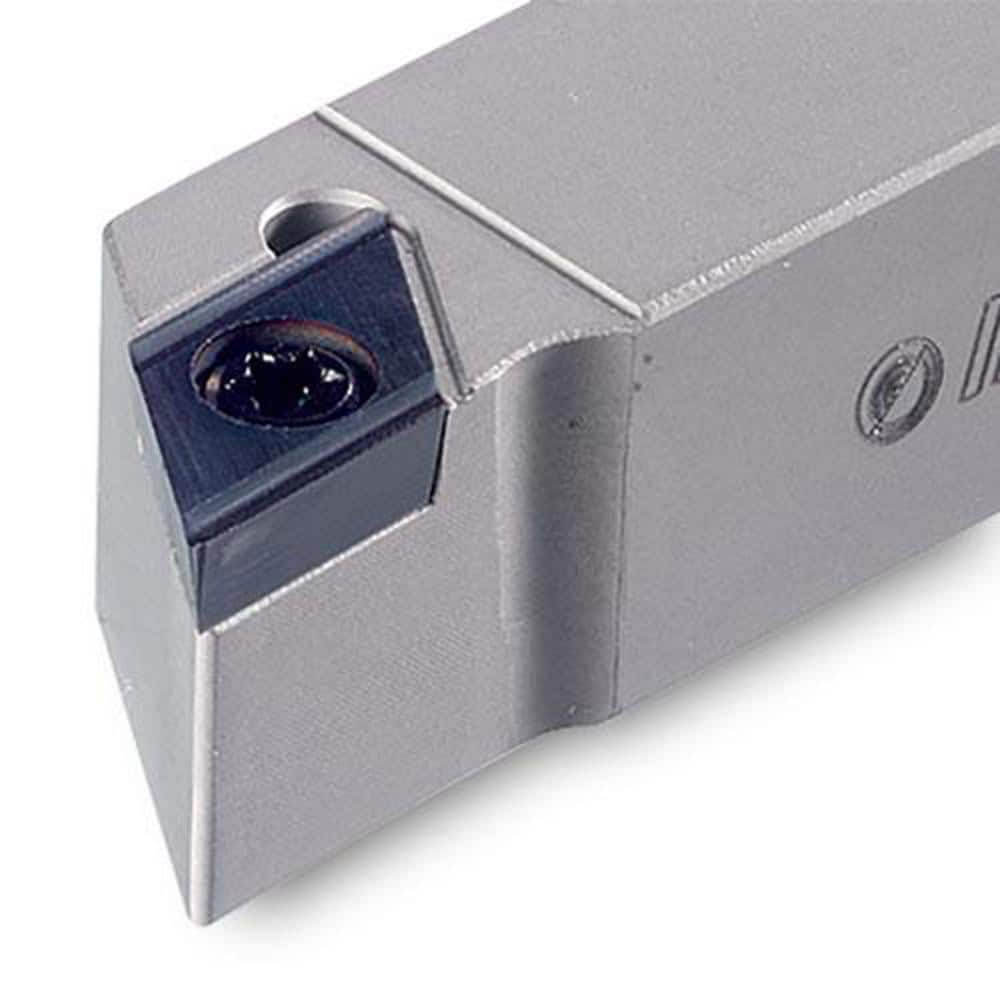

Indexable Turning Toolholders; Cutting Direction: Left Hand; Compatible Insert Size Code: DC..32.5.; Toolholder Style: SDJCL; Rake: Positive; Rake Angle: 7.000; Multi-use Tool: No; Lead Angle: 93.0; Insert Holding Method: Screw; Shank Width (Decimal Inch)
Item #: 57377509
Brand: Ingersoll Cutting Tools
Model #: 3606597
Product Specifications
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | DC..32.5. |
| Toolholder Style | SDJCL |
| Rake | Positive |
| Rake Angle | 7.000 |
| Multi-use Tool | No |
| Lead Angle | 93.0 |
| Insert Holding Method | Screw |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Width (Inch) | 1/2 |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Height (Inch) | 1/2 |
| Series | L-SH; SDJCR |
| Overall Length (mm) | 5.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Cutting Tool Application | Turning |
| Toolholder Material | Steel |
