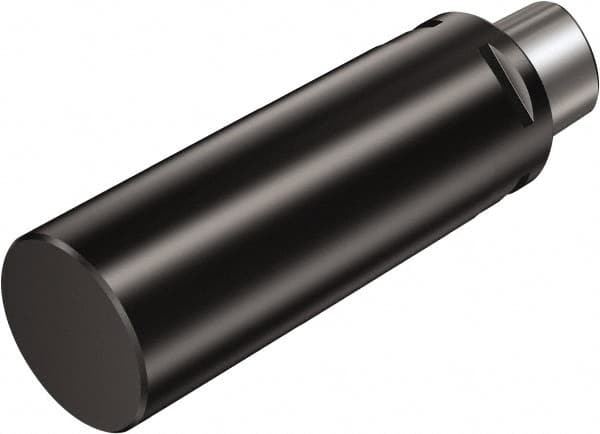

Sandvik Coromant - C5 Modular Connection, 95mm Diameter, Tool Holder Blank - 176mm Overall Length, 130mm Projection Flange to Nose End, 150mm Projection Gage Line to Nose End
Item #: 57392813
Brand: Sandvik Coromant
Model #: 5729639
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | C5 |
| Blank Diameter (mm) | 95.00 |
| Blank Diameter (Decimal Inch) | 3.7400 |
| Projection Gage Line to Nose End (Decimal Inch) | 5.9055 |
| Projection Gage Line to Nose End (mm) | 150.00 |
| Projection Flange to Nose End (mm) | 130.00 |
| Projection Flange to Nose End (Decimal Inch) | 5.1181 |
| Overall Length (mm) | 176.00 |
| Overall Length (Decimal Inch) | 6.9291 |
