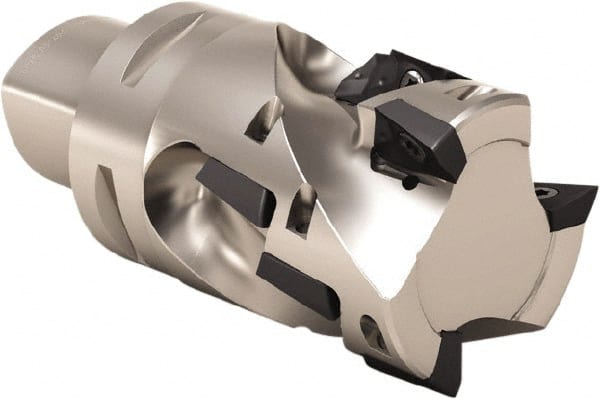

Seco - 44mm Cut Diam, 44mm Max Depth of Cut, 114mm OAL, Indexable Square Shoulder Helical End Mill - XO.X 10T3 Inserts, C4 Modular Connection, 90° Lead Angle, Through Coolant, Series Turbo 10
Item #: 57486870
Brand: Seco
Model #: 15270
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 44.00 |
| Cutting Diameter (Decimal Inch) | 1.7323 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Overall Length/Projection (mm) | 114.00 |
| Overall Length/Projection (Decimal Inch) | 4.4882 |
| Lead Angle | 90 |
| Series | Turbo 10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 44.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.7323 |
| Number of Cutter Inserts | 35 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 5 |
| Head Length (mm) | 90.00 |
| Head Length (Decimal Inch) | 3.5433 |
| Weldon Flat | No |
| Insert Compatibility | XO.X 10T3 |
| Maximum RPM | 16600 |
