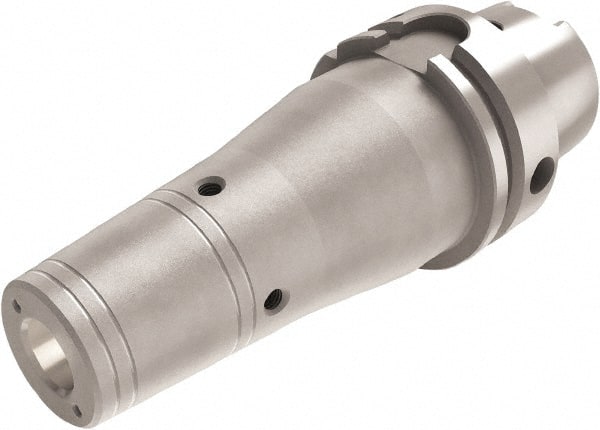

Seco - 6mm Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 130mm Projection, 0.945" Nose Diam, 1.476" Clamping Depth, 45,000 RPM, Through Coolant
Item #: 57488306
Brand: Seco
Model #: 77028
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.2362 |
| Hole Diameter (mm) | 6.00 |
| Projection (mm) | 130.00 |
| Projection (Decimal Inch) | 5.1181 |
| Nose Diameter (Decimal Inch) | 0.9450 |
| Through Coolant | Through Coolant |
| Clamping Depth (Decimal Inch) | 1.4760 |
| Overall Length (mm) | 162.00 |
| Overall Length (Decimal Inch) | 6.3779 |
| Balanced to (RPM) | 45000 |
