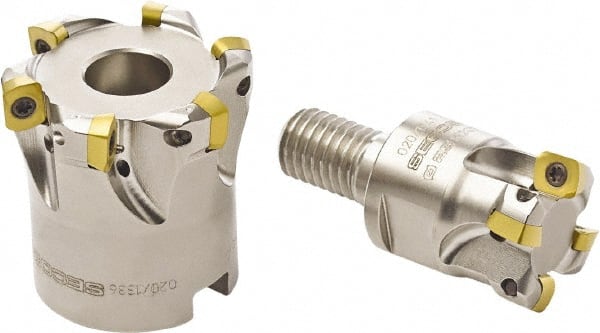

Seco - 6 Inserts, 1.378" Cutter Diam, 0.0315" Max Depth of Cut, Indexable High-Feed Face Mill - 0.6299" Arbor Hole Diam, 0.3307" Keyway Width, 1.378" High, LP.. 06 Inserts
Item #: 57490740
Brand: Seco
Model #: 71003
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.3780 |
| Maximum Depth of Cut (Decimal Inch) | 0.0315 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Overall Height (Decimal Inch) | 1.3780 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | LP.. 06 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 26000 |
| Maximum Body Diameter (Decimal Inch) | 1.0433 |
| Through Coolant | Yes |
| Complete Insert Compatibility | LPHT 060310ER-E05; LPHT 060310TR-M06; LPHT 060310TR-ME05; LPHW 060310TR-D06; LPHW 060310TR-MD07 |
| Keyway Width (Decimal Inch) | 0.3307 |
