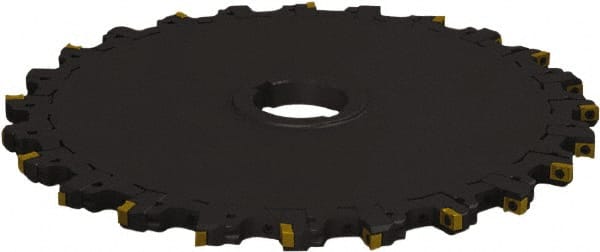

Seco - Arbor Hole Connection, 0.315" Cutting Width, 4.6654" Depth of Cut, 315mm Cutter Diam, 1.9685" Hole Diam, 12 Tooth Indexable Slotting Cutter - 335.18 Toolholder, LNK. 05.. Insert, Neutral Cutting Direction
Item #: 57491391
Brand: Seco
Model #: 58981
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 118.50 |
| Maximum Depth of Cut (Decimal Inch) | 4.6654 |
| Cutter Diameter (mm) | 315.00 |
| Cutter Diameter (Decimal Inch) | 12.4016 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 12 |
| Toolholder Style | 335.18 |
| Series | 335.18 |
| Insert Style | LNK. 05.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 24 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 5300 |
| Minimum Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (mm) | 10.00 |
| Hub Diameter (mm) | 69.00 |
| Hub Diameter (Decimal Inch) | 2.7165 |
| Keyway Width (Decimal Inch) | 0.4724 |
| Keyway Width (mm) | 12.00 |
| Radius | No |
| Cutter Body Width (mm) | 315.00 |
| Cutter Body Width (Decimal Inch) | 12.4016 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 335.18-315.0810XL.50-12N |
| Complete Insert Compatibility1 | LNK.05-F40M-E05; LNK.05-F40M-M06; LNK.05-H25-E05; LNK.05-MM4500-M06; LNK.05-MP3000-M06; LNK.05-MP3000-MD07; LNK.05-T350M-M06; LNK.05-T350M-MD07 |
