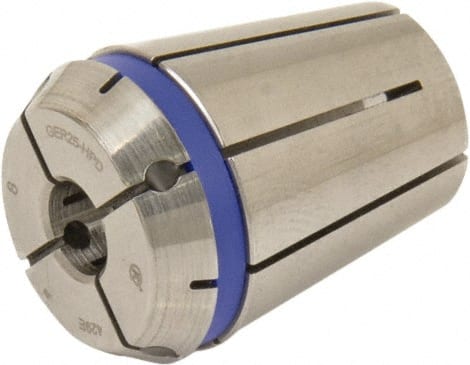

Seco - 1/4" ER25 Collet - 0.003mm TIR, 34mm OAL, 26mm Overall Diam
Item #: 57491664
Brand: Seco
Model #: 76994
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER25 |
| Size Range (Inch) | 1/4 |
| Size (Inch) | 1/4 |
| Size (Decimal Inch) | 0.2500 |
| TIR (mm) | 0.0030 |
| TIR (Decimal Inch) | 0.000118 |
| Maximum Collet Capacity (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 34.00 |
| Overall Length (Decimal Inch) | 1.3386 |
| Overall Diameter (mm) | 26.00 |
| Overall Diameter (Decimal Inch) | 1.0236 |
| PSC Code | 5136 |
