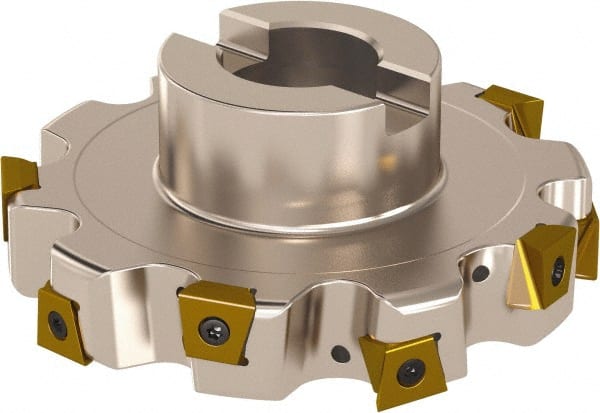

Seco - Shell Mount Connection, 63/64" Cutting Width, 1-3/4" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 6 Tooth Indexable Slotting Cutter - R335.25 Toolholder, L/XNHQ 1407 Insert, Right Hand Cutting Direction
Item #: 57492480
Brand: Seco
Model #: 03489
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 25.00 |
| Cutting Width (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 44.40 |
| Maximum Depth of Cut (Decimal Inch) | 1.7480 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 6 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | L/XNHQ 1407 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 4400 |
| Minimum Cutting Width (Decimal Inch) | 0.9843 |
| Maximum Cutting Width (Decimal Inch) | 0.9843 |
| Maximum Cutting Width (mm) | 25.00 |
| Hub Diameter (mm) | 70.00 |
| Hub Diameter (Decimal Inch) | 2.7559 |
| Radius | No |
| Complete Insert Compatibility1 | LNHQ 1407; XNHQ 1407 |
