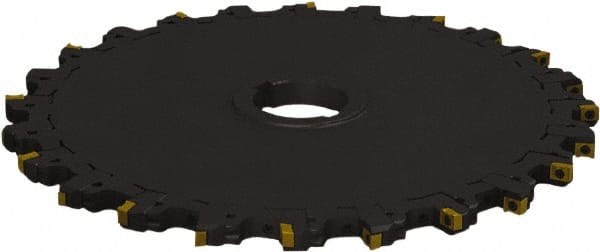

Seco - Arbor Hole Connection, 0.315" Cutting Width, 2-1/2" Depth of Cut, 200mm Cutter Diam, 1.9685" Hole Diam, 7 Tooth Indexable Slotting Cutter - 335.18 Toolholder, LNK.. 05.. Insert
Item #: 57492506
Brand: Seco
Model #: 58969
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 63.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.5000 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 7 |
| Toolholder Style | 335.18 |
| Series | 335.18 |
| Insert Style | LNK.. 05.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Maximum RPM | 6700 |
| Minimum Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (mm) | 10.00 |
| Radius | No |
| Cutter Body Width (mm) | 15.00 |
| Cutter Body Width (Decimal Inch) | 0.5906 |
| Complete Insert Compatibility1 | LNKT 050404PPN4-E05; LNKT 050404PPTN4-M06; LNKT 050408PPN4-E05; LNKT 050408PPTN4-M06; LNKT 050416PPTN4-M06; LNKT 050420PPTN4-M06; LNKT 050424PPTN2-M06; LNKT 050431PPTL1-M06; LNKT 050431PPTR1-M06; LNKW 050404PPN4-MD07; LNKW 050408PPN4-MD07 |
