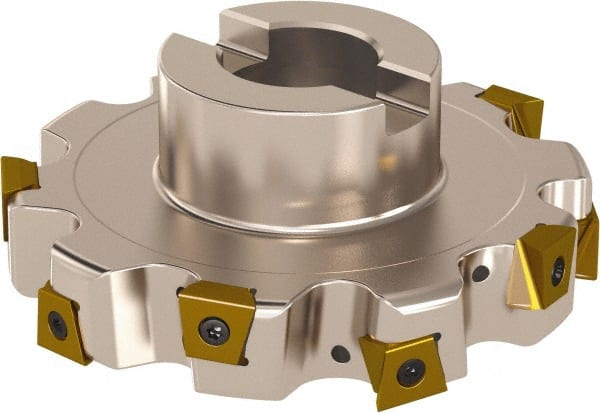

Seco - Shell Mount Connection, 63/64" Cutting Width, 2.3425" Depth of Cut, 250mm Cutter Diam, 2.3622" Hole Diam, 9 Tooth Indexable Slotting Cutter - R335.25 Toolholder, L/XNHQ 1407 Insert, Right Hand Cutting Direction
Item #: 57493264
Brand: Seco
Model #: 03491
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 25.00 |
| Cutting Width (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 59.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.3425 |
| Cutter Diameter (mm) | 250.00 |
| Cutter Diameter (Decimal Inch) | 9.8425 |
| Hole Diameter (mm) | 60.00 |
| Hole Diameter (Decimal Inch) | 2.3622 |
| Number of Teeth | 9 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | L/XNHQ 1407 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 18 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 3500 |
| Minimum Cutting Width (Decimal Inch) | 0.9843 |
| Maximum Cutting Width (Decimal Inch) | 0.9843 |
| Maximum Cutting Width (mm) | 25.00 |
| Hub Diameter (mm) | 130.00 |
| Hub Diameter (Decimal Inch) | 5.1181 |
| Radius | No |
| Complete Insert Compatibility1 | LNHQ 1407; XNHQ 1407 |
