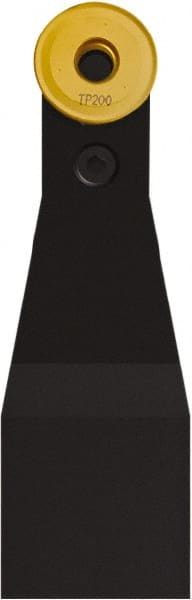

Seco - PRDC, Neutral Cut, 40mm Shank Height x 40mm Shank Width, Neutral Rake Indexable Turning Toolholder - 250mm OAL, RCMX 2507.. Insert Compatibility, Series Lever Lock
Item #: 57494650
Brand: Seco
Model #: 70226
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | PRDC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Lever Lock |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Compatibility | RCMX 2507.. |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (mm) | 32.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2795 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Insert Inscribed Circle (Decimal Inch) | 0.9843 |
