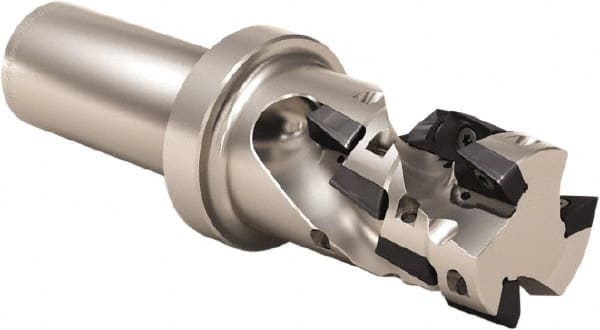

Seco - 40mm Cut Diam, 58mm Max Depth of Cut, 32mm Shank Diam, 144mm OAL, Indexable Square Shoulder Helical End Mill - XO.X 10T3 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Turbo 10
Item #: 57495277
Brand: Seco
Model #: 15171
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Overall Length/Projection (mm) | 144.00 |
| Overall Length/Projection (Decimal Inch) | 5.6693 |
| Lead Angle | 90 |
| Series | Turbo 10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 58.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.2835 |
| Number of Cutter Inserts | 28 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 4 |
| Head Length (mm) | 84.00 |
| Head Length (Decimal Inch) | 3.3071 |
| Weldon Flat | Yes |
| Insert Compatibility | XO.X 10T3 |
| Shank Length (Decimal Inch) | 2.3622 |
| Shank Length (mm) | 60.00 |
| Maximum RPM | 18600 |
