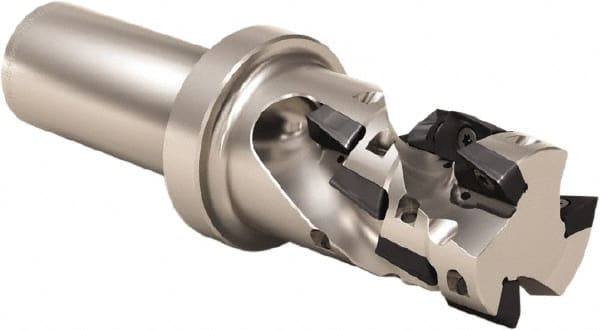

Seco - 32mm Cut Diam, 42mm Max Depth of Cut, 25mm Shank Diam, 120mm OAL, Indexable Square Shoulder Helical End Mill - XO.X 10T3 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Turbo 10
Item #: 57495285
Brand: Seco
Model #: 15113
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 120.00 |
| Overall Length/Projection (Decimal Inch) | 4.7244 |
| Lead Angle | 90 |
| Series | Turbo 10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 42.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.6535 |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 4 |
| Head Length (mm) | 64.00 |
| Head Length (Decimal Inch) | 2.5197 |
| Weldon Flat | Yes |
| Insert Compatibility | XO.X 10T3 |
| Shank Length (Decimal Inch) | 2.2047 |
| Shank Length (mm) | 56.00 |
| Maximum RPM | 20800 |
