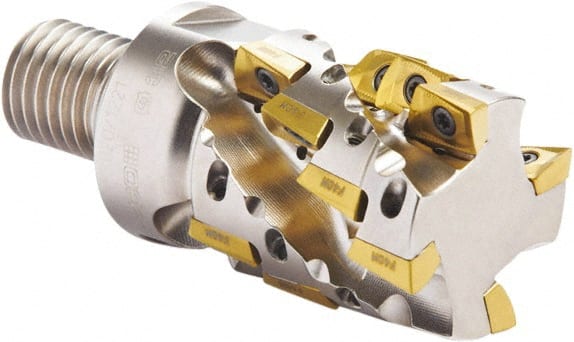

Seco - 32mm Cut Diam, 34mm Max Depth of Cut, 50mm OAL, Indexable Square Shoulder Helical End Mill - XO.X 10T3 Inserts, M16 Modular Connection, 90° Lead Angle, Through Coolant, Series Turbo 10
Item #: 57495392
Brand: Seco
Model #: 14898
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (mm) | 50.00 |
| Overall Length/Projection (Decimal Inch) | 1.9685 |
| Lead Angle | 90 |
| Series | Turbo 10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 34.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3386 |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 4 |
| Weldon Flat | No |
| Insert Compatibility | XO.X 10T3 |
| Maximum RPM | 20800 |
