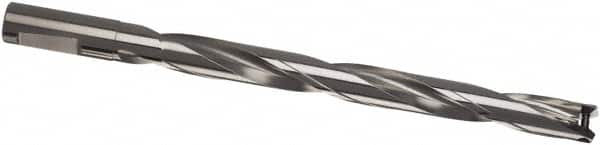

Guhring - 11.5 to 11.99mm Diam, 10xD, 117.1mm Max Depth, 1/2" Shank Diam, 182mm Flute, 182mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 110 Seat Size, 10xD HT 800 WP Toolholder, Series 4110
Item #: 57503385
Brand: Guhring
Model #: 9041100110050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4110 |
| Minimum Drill Diameter (mm) | 11.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4528 |
| Maximum Drill Diameter (mm) | 11.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.4720 |
| Drill Depth by Diameter Ratio | 10xD |
| Maximum Drill Depth (mm) | 117.10 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 110 |
| Toolholder Style | 10xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 182.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 182.00 |
| Toolholder Material | High Speed Steel |
