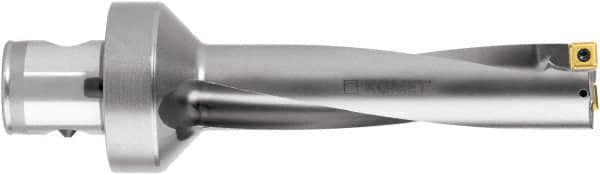

Komet - 120mm Max Drill Depth, 5xD, 23.8mm Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 57528101
Brand: Komet
Model #: U4552380
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U45 |
| Drill Diameter (mm) | 23.80 |
| Drill Diameter (Decimal Inch) | 0.9370 |
| Maximum Drill Depth (mm) | 120.00 |
| Maximum Drill Depth (Decimal Inch) | 4.7244 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9567 |
| Maximum Drill Diameter (mm) | 24.30 |
| Overall Length/Projection (mm) | 152.00 |
| Overall Length/Projection (Decimal Inch) | 5.9843 |
| Insert Compatibility | SOGX 080308 |
| Body Length (Decimal Inch) | 4.7244 |
| Body Length (mm) | 120.00 |
| Series | KUB Pentron |
