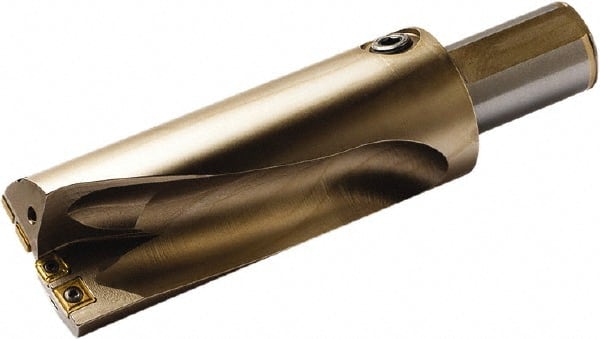

Seco - 8-3/4" Max Drill Depth, 2.5xD, 3-1/2" Diam, Indexable Insert Drill - 4 Inserts, 2-1/2" Shank Diam, Straight Shank
Item #: 57555740
Brand: Seco
Model #: 36773
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD542 |
| Drill Diameter (Inch) | 3-1/2 |
| Drill Diameter (Decimal Inch) | 3.5000 |
| Maximum Drill Depth (Decimal Inch) | 8.7500 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 2.5000 |
| Shank Diameter (Inch) | 2-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Number of Drill Inserts | 4 |
| Insert Compatibility (Outside or Peripheral) | SCGX 120408.. |
| Insert Compatibility | SPGX 1504-C1 |
| Flute Length (Decimal Inch) | 9.1400 |
| Body Length (Decimal Inch) | 10.7800 |
| Shank Length (Decimal Inch) | 4.5000 |
| Collar Diameter (Decimal Inch) | 3.5000 |
| Series | PerfoMAX |
