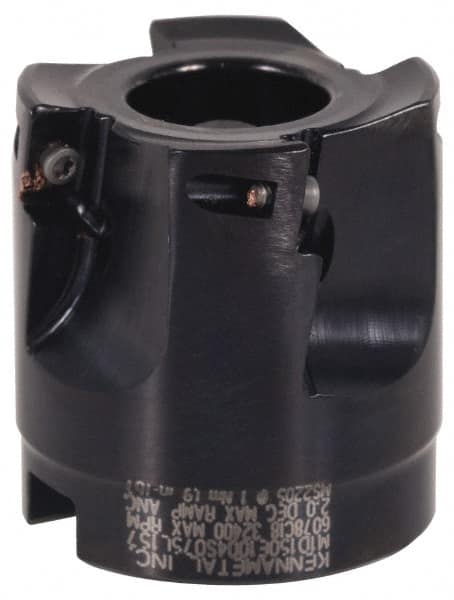

Kennametal - 8 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 0.389" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1.575" High, EC10.., EP10.. Insert Compatibility, Series Mill 1-10
Item #: 57561938
Brand: Kennametal
Model #: 3745042
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.5750 |
| Insert Compatibility | EC10.., EP10.. |
| Series | Mill 1-10 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3890 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Number of Flutes | 8 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Maximum RPM | 28100 |
| Pitch | Fine |
