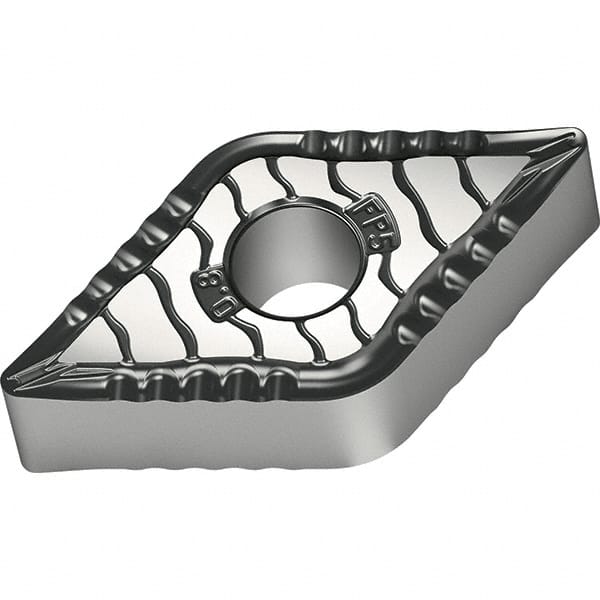

Walter - DNMG441 FP5 Grade WPP10S Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 55° Diamond, 1/2" Inscr Circle, 1/4" Thick, 1/64" Corner Radius
Item #: 57589988
Brand: Walter
Model #: 6057719
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 441 |
| Material | Carbide |
| Length (mm) | 15.49 |
| Length (Decimal Inch) | 0.6100 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | WPP10S |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P10/K20 |
| Chip Breaker | FP5 |
| ISO Number | DNMG150604-FP5 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DNMG441-FP5 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 55 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
