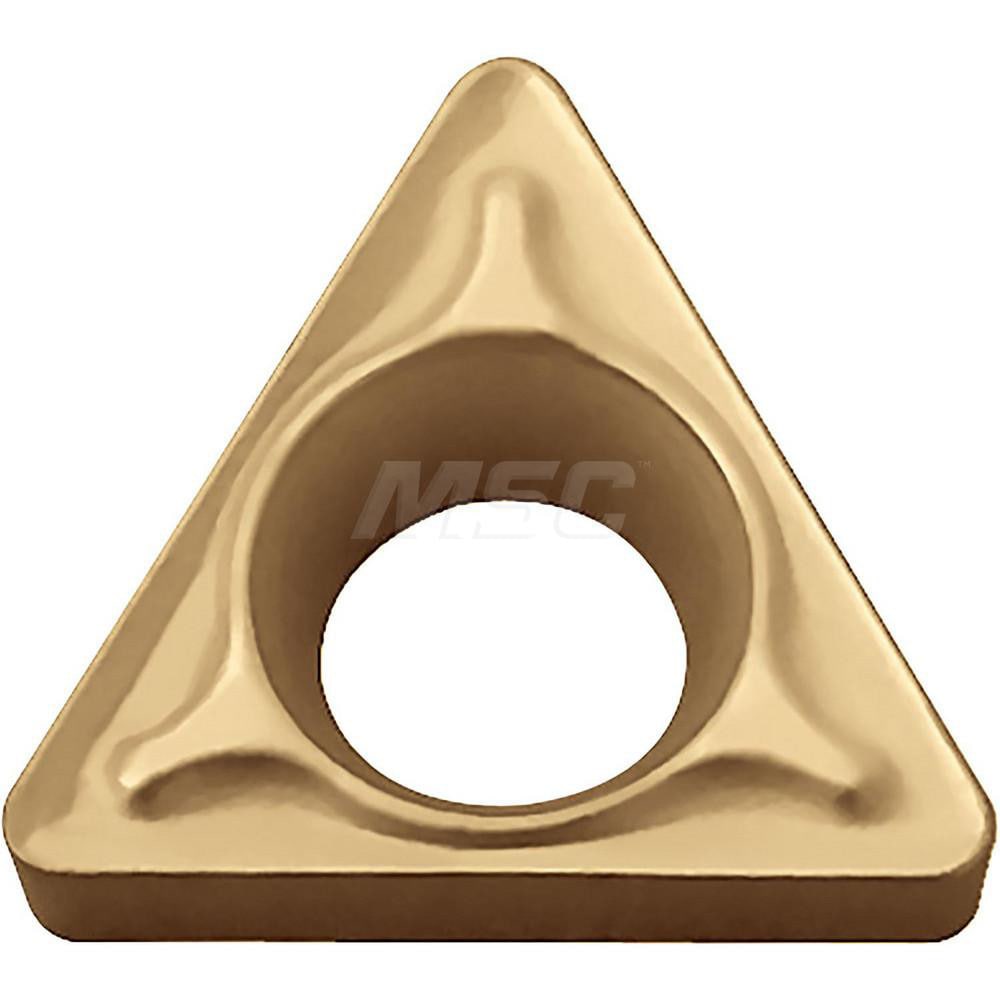

Boring Inserts; Insert Style: TBMT; Insert Size Code: 1211; Insert Material: Carbide; Material Grade: P30, P10, P20; Manufacturer Grade: CA5525; Inscribed Circle (Inch): 5/32
Item #: 18258152
Brand: Kyocera
Model #: TJR05801
Product Specifications
| Insert Style | TBMT |
| Insert Size Code | 1211 |
| Insert Material | Carbide |
| Material Grade | P30; P10; P20 |
| Manufacturer Grade | CA5525 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 5 |
| Rake | Positive |
| Chipbreaker | DP |
| Series | ISOI |
| Coating Process | CVD |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | TBMT060104DP |
| Rake Angle | 14 |
| Manufacturers Catalog Number | TJR05801 |
| Length (Decimal Inch - 4 Decimals) | 0.2364 |
| Width (Decimal Inch - 4 Decimals) | 0.2364 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.0788 |
