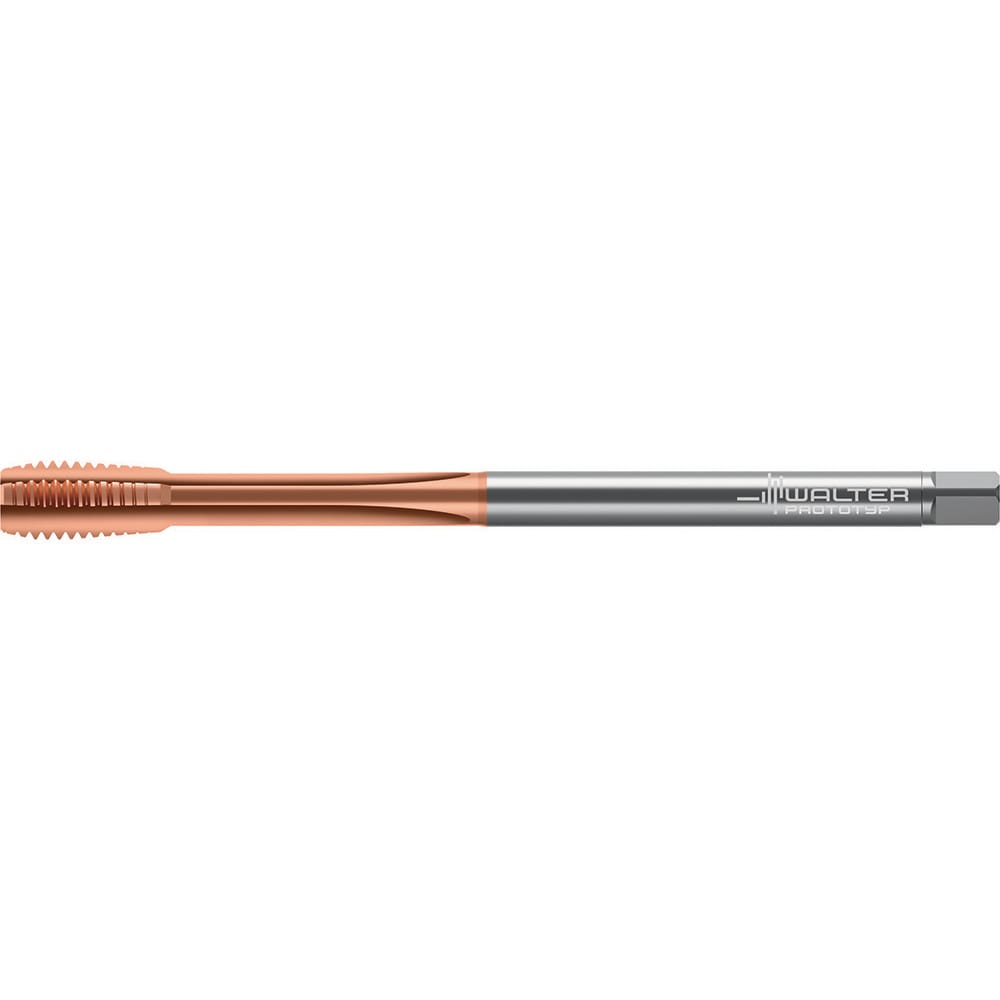

Straight Flute Tap: M12 x 1.75 M, 3 Flute, Semi-Bottoming Chamfer, 6HX Class of Fit, HSS-E, AlCrTiN Finish
Item #: 53443800
Brand: Walter-Prototyp
Model #: 8128441
Product Specifications
| Tap Type | Straight Flute |
| Thread Size (mm) | M12 x 1.75 |
| Thread Standard | M |
| Chamfer | Semi-Bottoming |
| Material | High-Speed Steel-E |
| Coating/Finish | AlCrTiN |
| Thread Direction | Right Hand |
| Coolant Through | Yes |
| Class Of Fit | 6HX |
| Thread Limit | H9 |
| Number Of Flutes | 3 |
| Oversize | No |
| Overall Length (Decimal Inch) | 5.5118 |
| Overall Length (mm) | 140.0000 |
| Thread Pitch (mm) | 1.75 |
| Thread Length (Inch) | 0.9055 |
| Thread Length (mm) | 23.00 |
| Application | Threading |
| Shank Diameter (mm) | 9.0000 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Tapping Depth (mm) | 23.00 |
| Tapping Depth (Decimal Inch) | 0.9055 |
| Square Length (mm) | 10.00 |
| Square Length (Decimal Inch) | 0.3937 |
| Square Size (mm) | 7.00 |
| Square Size (Decimal Inch) | 0.2756 |
| Series | TC130 |
| UNSPSC Code | 23241600 |
