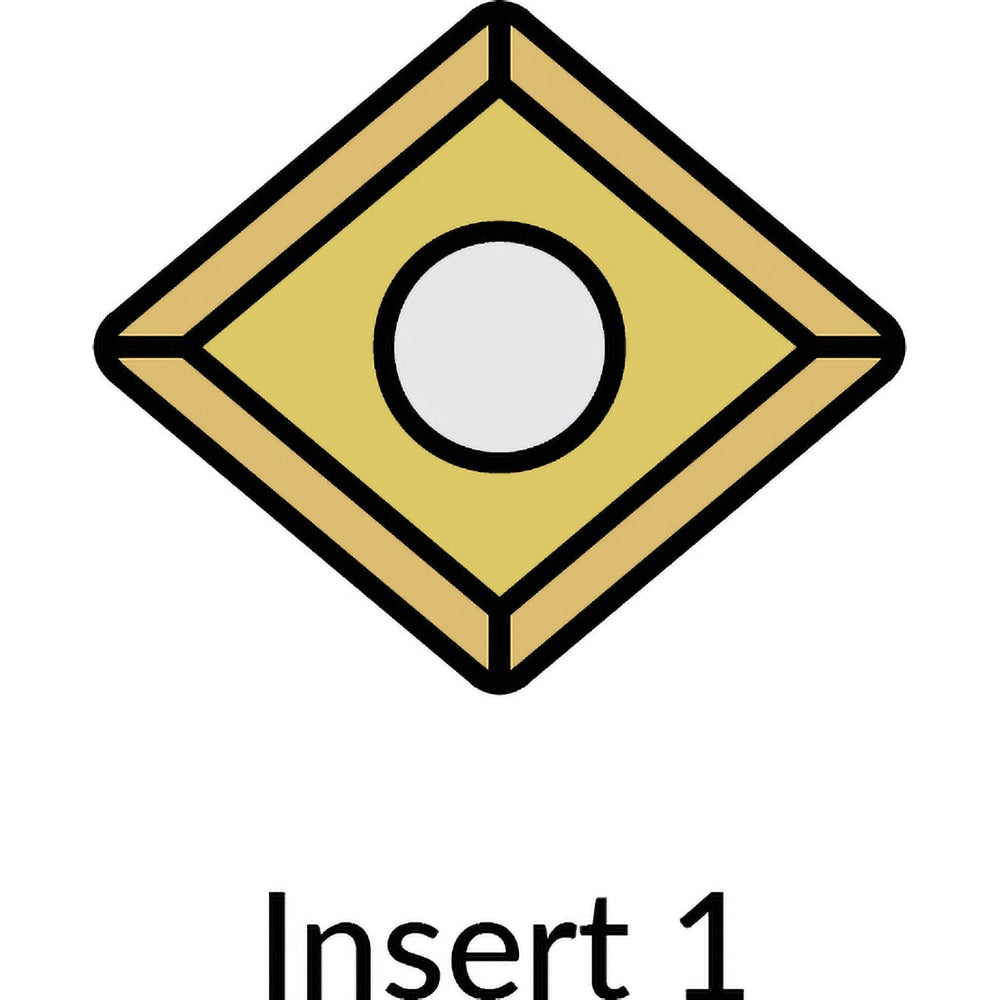

Turning Insert: CCMT 32.51, Carbide
Item #: 15305055
Brand: Micro 100
Model #: 50-1105
Product Specifications
| ANSI Insert Code | CCMT31.51 |
| ISO Insert Code | CCMT090204 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | CCMT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Maximum Depth of Cut (Decimal Inch) | 0.1272 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | M |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3820 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | CCMT 31.51 |
| Chip Breaker | Flat Top |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Chamfering; Facing; Turning; Boring |
| ANSI Size Code | 31.51 |
| ISO Size Code | 090204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 31.51 |
