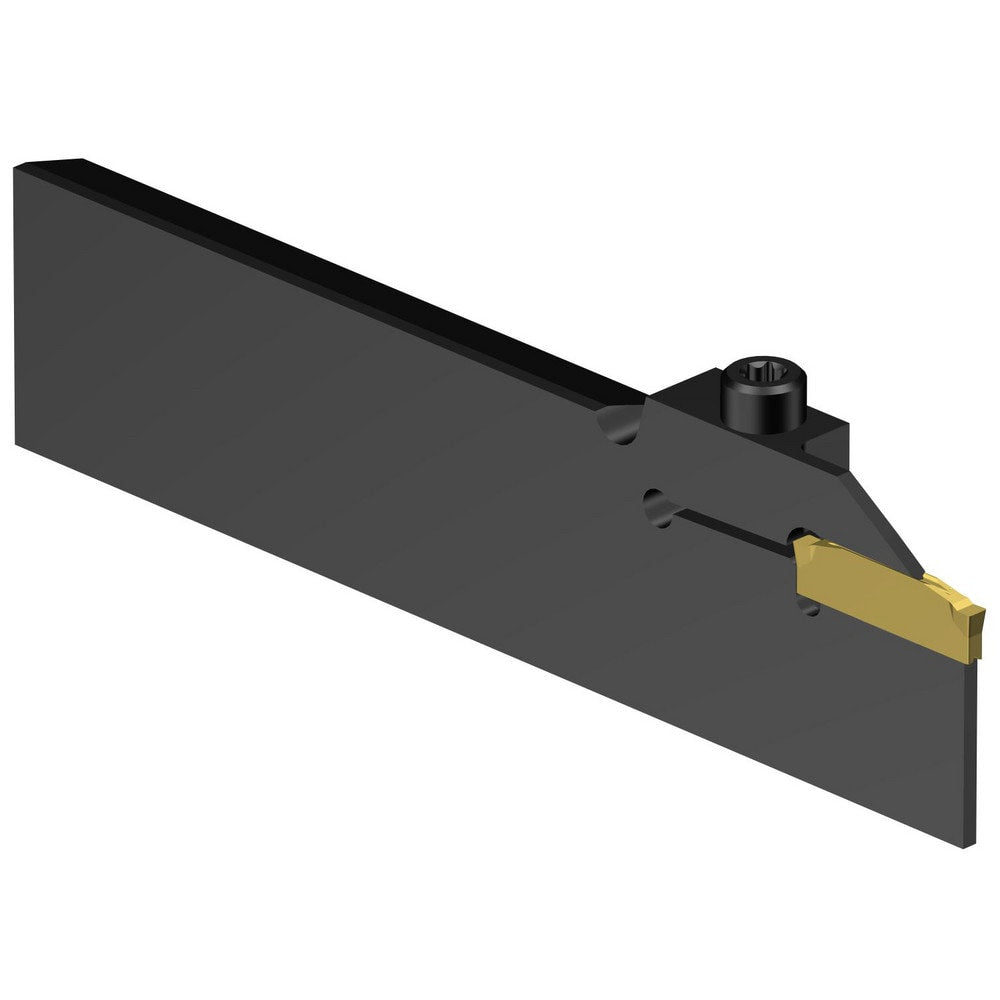

Indexable Cut-Off Blades; End Type: Single; Cutting Direction: Left Hand; Hand: Left Hand; Blade Height (mm): 25.90; Blade Height (Decimal Inch): 1.0197; Blade Width (Decimal Inch): 0.3248; Blade Width (mm): 8.25
Item #: 05904446
Brand: Sandvik Coromant
Model #: 8446706
Product Specifications
| End Type | Single |
| Cutting Direction | Left Hand |
| Hand | Left Hand |
| Blade Height (mm) | 25.90 |
| Blade Height (Decimal Inch) | 1.0197 |
| Blade Width (Decimal Inch) | 0.3248 |
| Blade Width (mm) | 8.25 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Overall Length (mm) | 110.00 |
| Blade Style | C2R-BR..L..DF1 |
| Compatible Insert Style | CoroCut 2 -size E (C2I-E2-0200-) |
| Compatible Insert Size Code | E |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Series | CoroCut 2 |
| Insert Style | C2I |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Insert Seat Size | 2 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Insert Width (mm) | 2.30 |
| Manufacturers Catalog Number | C2R-BR21-LE20DF1 |
| Insert Type | Cut-Off |
| Insert Width | 0.079 |
| UNSPSC Code | 27112809 |
