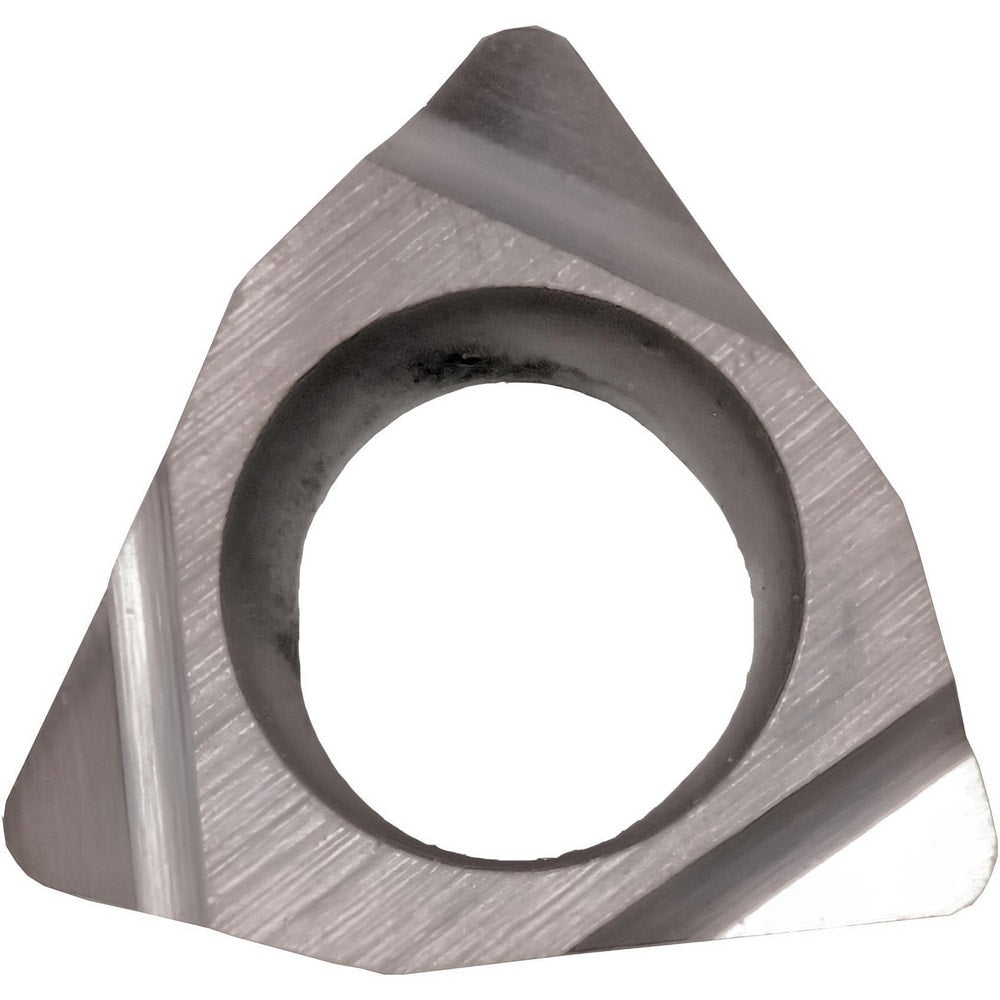

Boring Inserts; Insert Style: WBGT; Insert Size Code: 1211; Insert Material: Carbide; Material Grade: K20, K10; Manufacturer Grade: KW10; Inscribed Circle (Inch): 5/32
Item #: 18257071
Brand: Kyocera
Model #: TWE00535
Product Specifications
| Insert Style | WBGT |
| Insert Size Code | 1211 |
| Insert Material | Carbide |
| Material Grade | K20; K10 |
| Manufacturer Grade | KW10 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 5 |
| Rake | Positive |
| Chipbreaker | F |
| Series | ISOI |
| Coating Process | Uncoated |
| Included Angle | 80 |
| Insert Shape | Trigon |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloys |
| Primary Workpiece Material Code | S; N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | WBGT060104L-F |
| Rake Angle | 15 |
| Manufacturers Catalog Number | TWE00535 |
| Length (Decimal Inch - 4 Decimals) | 0.3940 |
| Width (Decimal Inch - 4 Decimals) | 0.394 |
| Coating/Finish | WC-Co |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.1313 |
