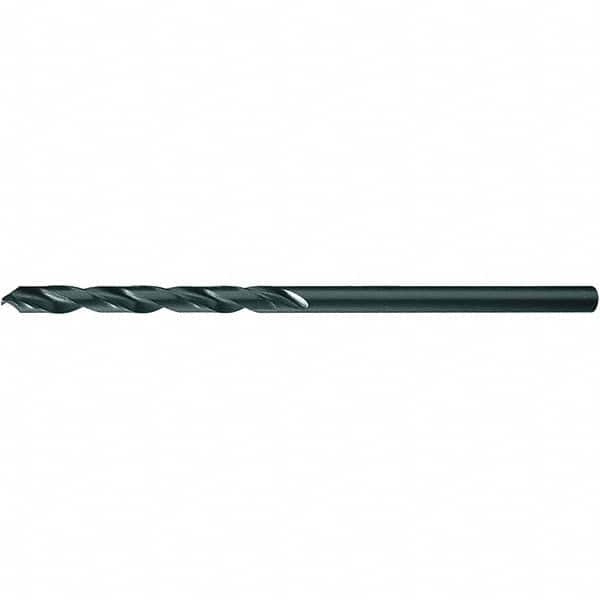

19/64″ Diam 3-1/16″ Flute Length 135° High Speed Steel Aircraft Extension Drill Oxide Finish, Straight-Cylindrical Shank, Split Point, Self-Centering, Series 1630
Item #: 57643025
Brand: Cle-Force
Model #: C68882
Product Specifications
| Drill Bit Size (Inch) | 19/64 |
| Overall Length (Inch) | 6 |
| Tool Material | High Speed Steel |
| Coating/Finish | Oxide |
| Series | 1630 |
| Drill Point Angle (Degrees) | 135 |
| Drill Bit Size (Decimal Inch) | 0.2969 |
| Shank Type | Straight-Cylindrical |
| Flute Type | Spiral |
| Flute Length (Inch) | 3-1/16 |
| Flute Length (Decimal Inch) | 3.0625 |
| Cutting Direction | Right Hand |
| Self-Centering | Yes |
| Point Type | Split |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0010 in |
| Shank Diameter (Inch) | 19/64 |
| Shank Diameter (Decimal Inch) | 0.2969 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Standards | ASME B94.11M |
