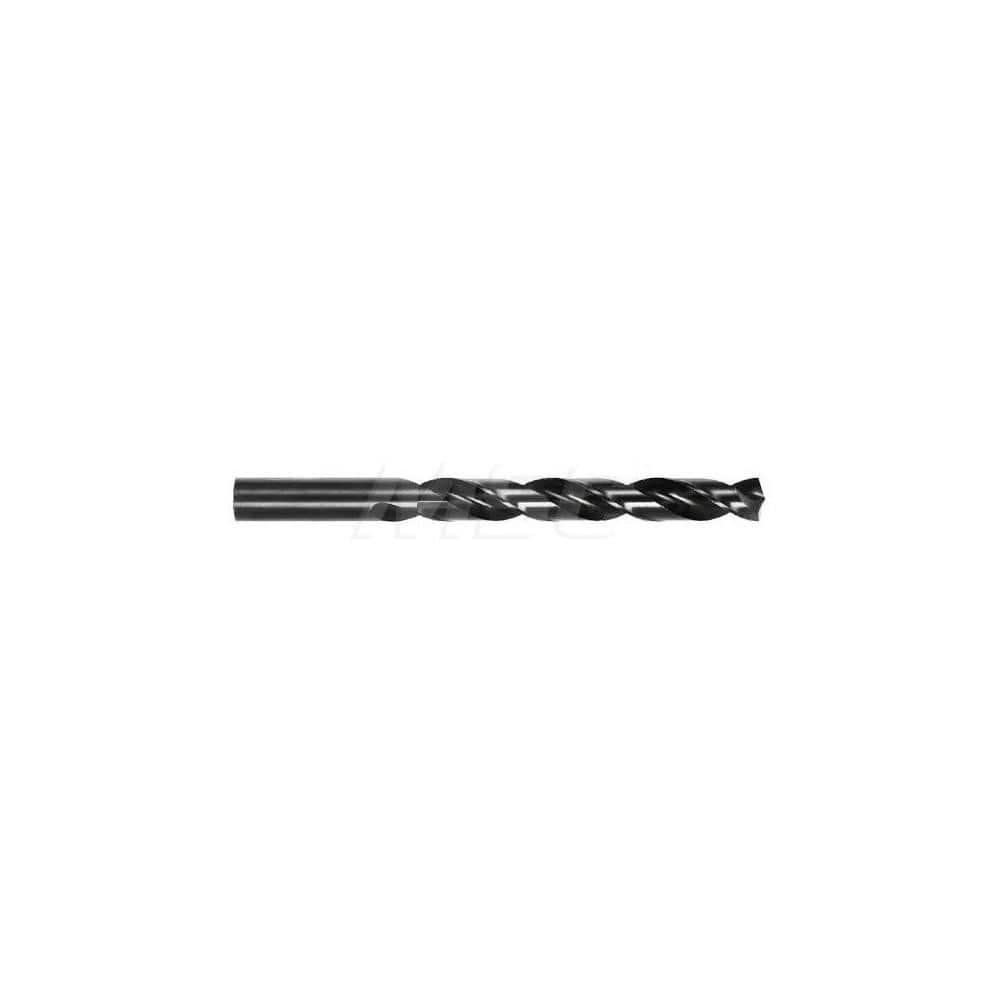

13/64″ Diam 2-7/16″ Flute Length 135° High Speed Steel Aircraft Extension Drill Oxide Finish, Straight-Cylindrical Shank, Split Point, Self-Centering, Series 6H501
Item #: 57643348
Brand: Rocky Mountain Twist
Model #: 95001909
Product Specifications
| Drill Bit Size (Inch) | 13/64 |
| Overall Length (Inch) | 6 |
| Tool Material | High Speed Steel |
| Coating/Finish | Oxide |
| Series | 6H501 |
| Drill Point Angle (Degrees) | 135 |
| Drill Bit Size (Decimal Inch) | 0.2031 |
| Shank Type | Straight-Cylindrical |
| Flute Type | Spiral |
| Flute Length (Inch) | 2-7/16 |
| Flute Length (Decimal Inch) | 2.4375 |
| Cutting Direction | Right Hand |
| Self-Centering | Yes |
| Point Type | Split |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Shank Diameter (Inch) | 13/64 |
| Shank Diameter (Decimal Inch) | 0.2031 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Standards | NAS 907 |
