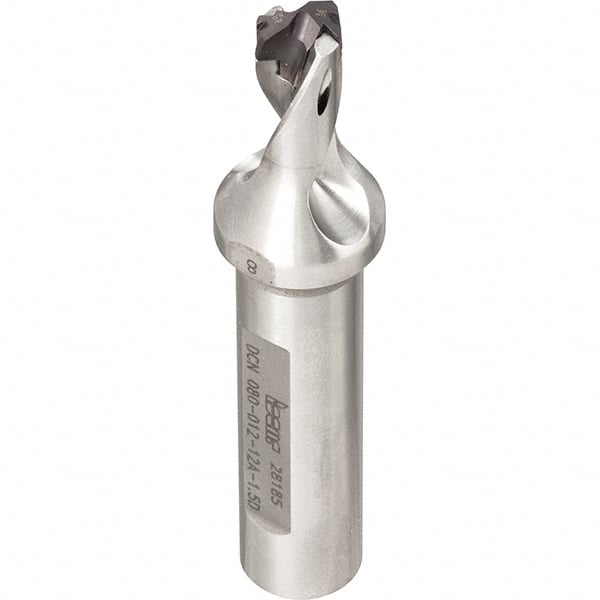

Iscar - 29/64" to 0.468" Diam, 1.5xD, 0.68" Max Depth, 5/8" Shank Diam, 3.22" OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 57706319 Toolholder, Series SumoCham
Item #: 57706319
Brand: Iscar
Model #: 3203346
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.4530 |
| Maximum Drill Diameter (Decimal Inch) | 0.4680 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.6800 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN R |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 1.3300 |
| Overall Length (Decimal Inch) | 3.2200 |
| Shank Length (Decimal Inch) | 1.8900 |
