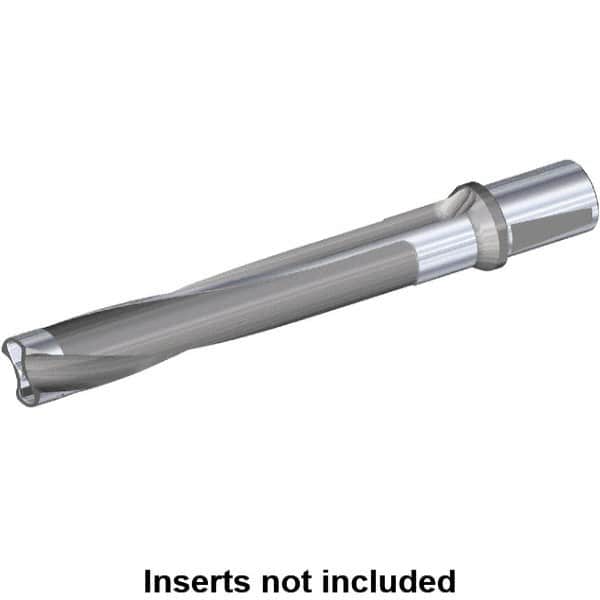

Kennametal - Series KSEM Plus, Head Connection FDS50, 3xD, 50mm Shank Diam, Drill Body - 228mm Drill Body Length to Flange, WD Toolholder, 296mm OAL, 228mm Drill Body Length, 135mm Flute Length, Whistle Notch Shank, Through Coolant
Item #: 57719197
Brand: Kennametal
Model #: 3950221
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS50 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Drill Body Length to Flange (mm) | 228.00 |
| Drill Body Length to Flange (Decimal Inch) | 8.9764 |
| Toolholder Style | WD |
| Overall Length (mm) | 296.00 |
| Overall Length (Decimal Inch) | 11.6535 |
| Gage Length (mm) | 228.00 |
| Gage Length (Decimal Inch) | 8.9764 |
| Flute Length (mm) | 135.00 |
| Flute Length (Decimal Inch) | 5.3150 |
| Shank Type | Whistle Notch |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
| Through Coolant | Through Coolant |
| Includes | Clamping Screws; Wrench |
