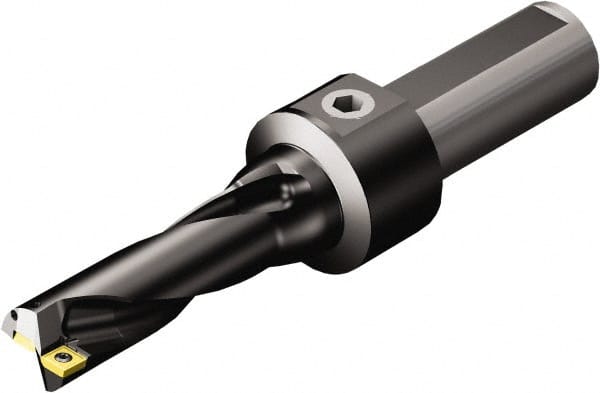

Sandvik Coromant - 2.205" Max Drill Depth, 3xD, 0.687" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Flange Shank
Item #: 57754616
Brand: Sandvik Coromant
Model #: 5724464
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Decimal Inch) | 0.6870 |
| Maximum Drill Depth (Decimal Inch) | 2.2050 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7270 |
| Overall Length/Projection (Decimal Inch) | 7.0590 |
| Insert Compatibility | 880-030305H-C-GM; 880-0303W05H-P-GM |
| Flute Length (Decimal Inch) | 2.0610 |
| Body Length (Decimal Inch) | 4.0444 |
| Shank Length (Decimal Inch) | 3.0146 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.51 |
