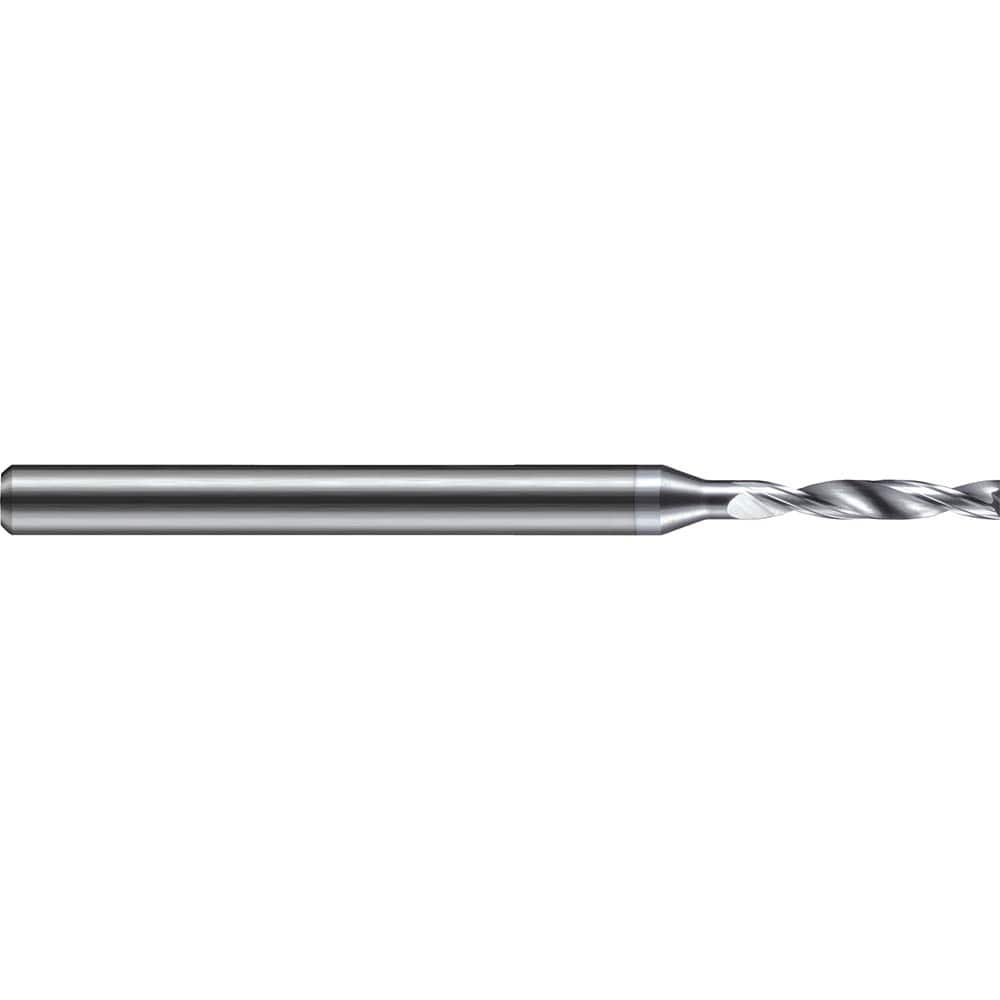

Harvey Tool - 3/32", 180° Point, Solid Carbide Micro Drill Bit
Item #: 57785164
Brand: Harvey Tool
Model #: FBD0937-C8
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0937 |
| Drill Bit Size (Inch) | 3/32 |
| Shank Diameter (mm) | 4 |
| Drill Point Angle | 180 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiB2 |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 63 |
| Flute Length (mm) | 16.00 |
| Flute Length (Decimal Inch) | 0.630 |
| Flute Length (Inch) | 0.630 |
| Flute Type | Spiral |
| Point Type | Flat-Bottom |
| Drill Bit Diameter Tolerance (mm) | h6 |
| Series/List | Miniature High Performance Drills - Flat Bottom Drill |
